Z5X
Using Z-axis lifting off line, effective focus on SMT and PTH plug-in components detection equipment
Off-Line AOI Z5X
Flexible/Multi-function AOI

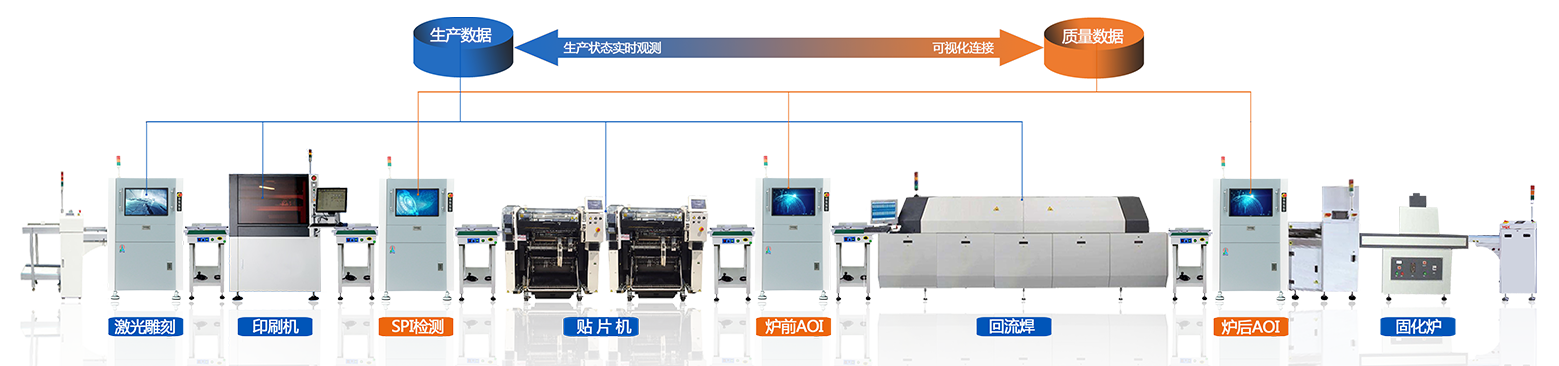

不同型號適用于生產在線的多個質量控制位置，包括錫膏印刷后2D的錫膏質量檢查，回流焊接前的元器件測定，回流焊接后PCBA的工藝品質檢查，以及手插件波峰焊接后的檢查
The Z5 is the inland first AOI to inspect the component side of PTH technique
Avaible height :50mm～90mm;
Safety distance: 50mm
Identifiable component height: 1mm～50mm
Adjust method: Automatically
Can customized above height for customer
Multi-functional intelligent AOI
with high resolution industrial camera system, capture quality defects at every moment

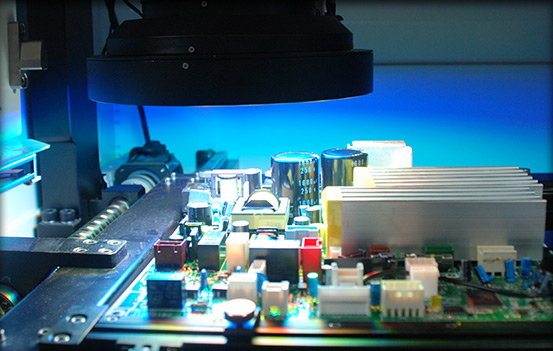

The patented Z axis adjustable AOI can inspect component side of PTH；
Simpler debugging algorithm, make the programming easier and easy to learn；
Automatic identify the positive and negative side, auto software origin emendation；
Multi marks 、multi barcode、bad marks identify convenient for programming and debugging；
OCR (Optical Character Recognition) function applied on AOI improving the accuracy rate of wrong part；
Share date among AOI internal network.

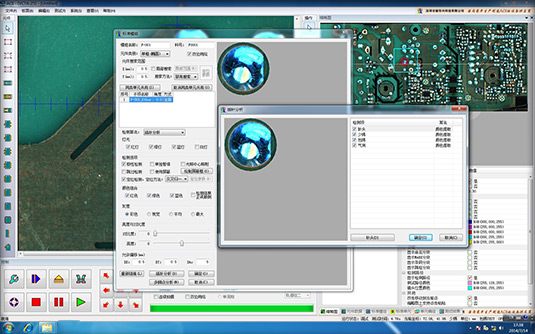

Intelligent color analysis technology
Using color extract and Analysis Technology (CPAT) can extract the object shape more correctly and gain highly precision of the inspection；
The application of multi-marks and multi-boards can be more adapted the demands of the production tests and give you many scene applications.
Intelligent solder ball inspection algorithm
Implements algorithm inboard face color, luminance, shape and color of solder balls, test solder balls of PCB and around single components, and also implement solder ball testing through overall PCB frame.

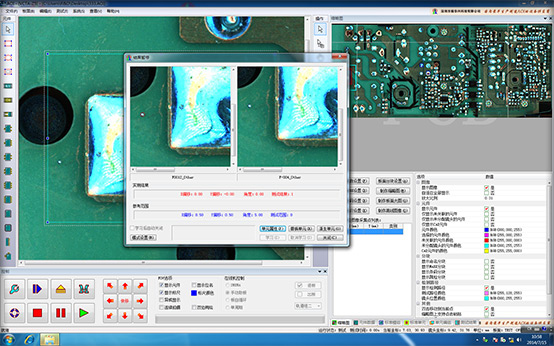

One inspection box multi algorithm
Many algorithms application and combination will enhance the pass rate and reduce the rate of misjudging greatly.
One inspection box can use two or more algorithms, such as “Color” extract and “Similarity” and so on, no need draw more inspection box. Which greatly increase testing efficiency.
Consumer protection service items usually include "free warranty maintenance",
"regular return visit", "on-site training", "24-hour appeal response" and other
categories. We provide customers with the best equipment and perfect fast
service guarantee with the most sincere attitude.
● The equipment shall be guaranteed free of charge for one year and maintained
for life from the date of acceptance. The operationcontrol software of the sold
equipment shall be upgraded free of charge for life to ensure the latest software
version and optimization of functions.
● Call back and visit customers irregularly, communicate with customers in time
and improve relevant problems.
● The Customer Service Department shall respond to customer demands within
24 hours and within 2 hours after receiving them.
Overseas customers can provide nearby technical services or provide remote
training and technical support according to actual needs.
